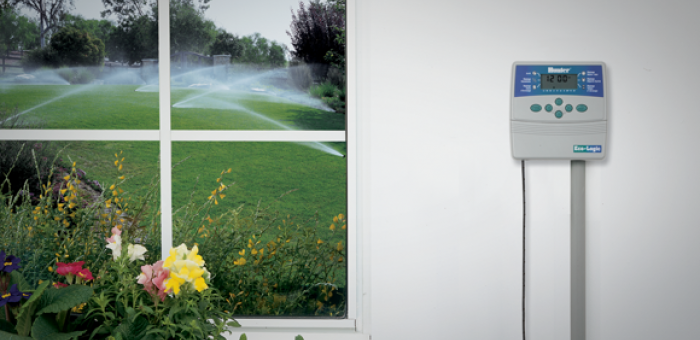

Eco Logic
For small gardens and landscapes, Eco Logic brings effortless control to water efficiency.
The Eco-Logic controller is a reliable, economical control solution for small areas that need irrigation. Its features include easy push-button programming, Hunter Quick-Check, two independent programs with four start times each, a 365-day calendar, seasonal adjustment (10% to 150%), weather sensor compatibility, and non-volatile memory. The Eco-Logic is sized in 4- and 6-station models, each possessing features that can maximize a system’s efficiency. For simplicity, dependability, and economy, nothing beats the Hunter Eco-Logic.
Available in 4 and 6 Station Indoor Model

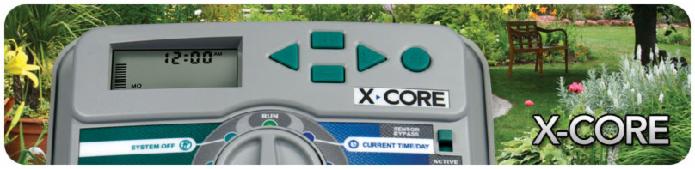

X-Core Controller
Entry-level residential controller with extra flexibility, features, and memory.
The new Hunter X-Core presents handy water management control in a compact, user-friendly controller that is capable of meeting the irrigation requirements for a wide range of residential landscapes. Simply put, the XC brings a whole lot extra to a small controller. Like extra power…the X-Core offers a choice of 4-, 6-, and 8-station models, each with plenty of might to operate one or two valves per station plus a pump start relay or master valve. Extra features…including global seasonal adjustment and a 365-day calendar to make water savings easier, plus a default system that permits retrieval of the original program entered into the controller. Extra flexibility…with three programs (each with four start times), multiple scheduling formats, and the ability to select sensor input by station. And extra memory…with a non-volatile on-board program backup and a high-energy lithium battery for timekeeping to assure you’ll never have to reprogram the controller due to power outages. The choice for those who demand outstanding reliability, the XC is where to turn for extra peace of mind.
Get Smart: The X-Core Does More
Searching for a hard working, entry-level residential controller? X-Core is on the case. Hunter’s popular XC controller is now X-Core. Plug in the revolutionary Solar Sync ET sensor and the X-Core is converted into a Smart controller, using advanced water conservation technology and regulating irrigation runtimes based on locally measured weather. Installation and maintenance are simple with Hunter remote capability, accessible through the optional SmartPort®. Control up to 8 stations with 3 programs and 4 start times each. Case closed.
Indoor and outdoor models available

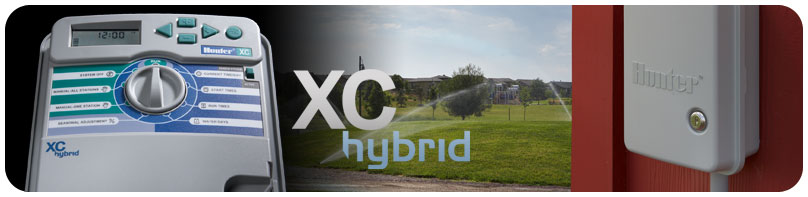

XC Hybrid Controller NEW BATTERY POWER
Forget following that winding trail to find an accessible outlet. Hunter Industries’ new XC Hybrid Controller brings you the power without the plug. With all the great water management features of the XC Controller, the new XC Hybrid operates DC latching solenoids with battery power. Ready for outdoor or indoor installation, the XC Hybrid comes in 4, 6, 8, 10 and 12 station models, meaning it is your solution for a wide range of residential and commercial applications. Small residential areas, parks, gardens, roadway medians and roundabouts are ready for the XC Hybrid. Presenting Hunter. Unplugged.
Water management via dc power
Find advance water management control at your fingertips. Compact, user-friendly and battery powered, the XC Hybrid is proof big things come in small packages. Features such as a 365 day calendar, three independent programs (each with four start times), global seasonal adjustment and station-controlled sensors mean saving a little blue and a lot of green. And we’ve got you covered: With ‘Easy Retrieve’ memory backup and on-board, non-volatile memory, you’ve got the assurance to recall all the controller’s watering programs. Did we put the XC in ‘excellence’? You’ll think so.

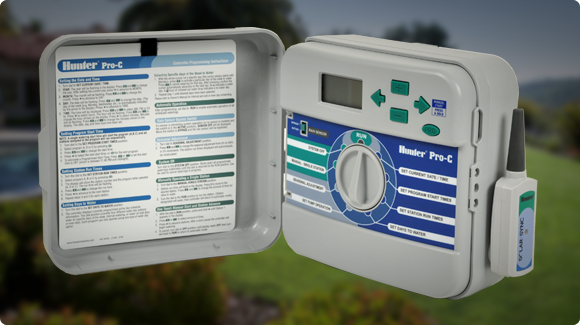

Pro-C Controller
A complete family of modular, full-featured residential and light commercial controllers.
No need to bring along a variety of different-sized controllers to see which one is best for the job. With its ability to customize to the particular size you need (from 3 to 15 stations), the Pro-C will always be the right choice. A modular system also makes inventory a breeze–there are only three different units to stock (indoor cabinets, outdoor cabinets and station modules). But, modularity isn’t all this controller has to offer, with great features such as three programs with multiple start times, independent day scheduling options, “one touch” manual start and rapid advance, a programmable event day off, robust heavy-duty locking plastic cabinet, and superior surge protection. Pro-C: delivering maximum flexibility for landscapes that require a minimal number of stations.

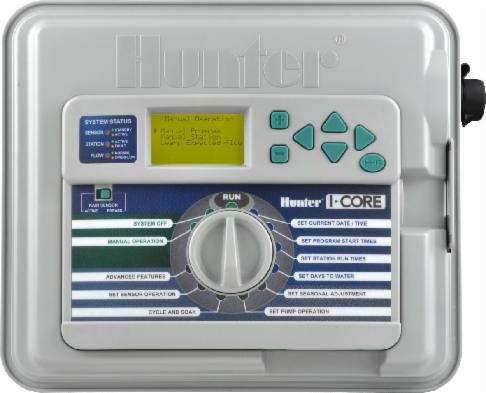

I-Core Controller
The I-Core is Hunter’s controller for demanding commercial and high-end residential applications. Loaded with innovative features like state of the art flow monitoring, quick system overview access, a factory-installed SmartPort®, six language capability, and a bold, backlit display, the I-Core should be considered for most high-end irrigation projects. A big reason the I-Core is so unique is its sheer versatility. The plastic cabinet version is expandable from 6 to 30 stations, and the metal cabinet model can handle up to 42. Adding a DUAL two-wire module can even expand station capability to 48. Stainless steel and pedestal models are also available, providing a broad range of enclosure choices. With other add-on options like a ROAM or ICR remote or the conservation-focused Solar-Sync, I-Core’s possibilities are all but limitless.
Get Beauty and Brains
Want it all? Gorgeous turf, advanced programming capability, and an intuitive interface? Meet the I-Core. Designed for demanding commercial and high-end residential applications, the full-featured I-Core controller is easy to use, easy to install, and easy to program, with a variety of new features that will redefine irrigation intelligence.
Switch It Up
Modular means more options. And more options mean an easy install. The I-Core plastic is expandable from 6 to 30 stations and the metal is expandable to 42, for a broad range of choices to meet all of your customers’ needs.
Go With the Flow
I-Core’s real-time flow monitoring capability provides overflow protection and flow totaling to minimize the potential for water waste.

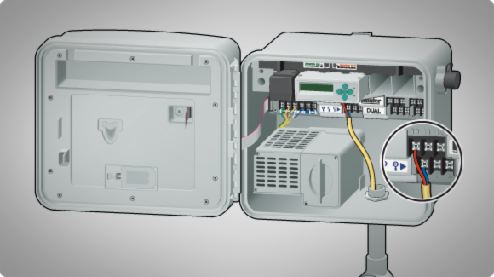

Dual
Use Dual to Convert The I-Core to A Cutting Edge Two-Wire Controller
DUAL is Hunter’s innovative two-wire plug-in for the I-Core controller. Designed to bring the convenience and efficiency of two-wire technology to all, the DUAL system can operate up to 48 zones via a single pair of wires, at distances up to 7,500 feet (2.3 km). The 48 zones can all be installed on a single path, or divided over multiple paths to take advantage of pipe trenches. Because it only requires two wires, DUAL offers unmatchable savings in labor, wire, and money. Since it’s I-Core compatible, system operators still receive advanced features and benefits like flow monitoring, quick system overview access, a factory-installed SmartPort®, six language capability, and a bold, graphic display. Dual decoders come in one and two-station versions. Aptly named Dual-1 and Dual-2, the decoder choices ensure any I-Core Dual system is customizable to the needs of any installation.

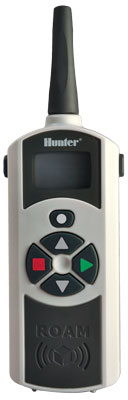

Roam Remote Control
ROAM with Hunter.
Feeling like you need to be in two places at once? Finally, you don’t need to walk back to the controller to stop and start a manual watering cycle. The ROAM Remote lets you do just that: Roam wire-free for simple remote operation. The mid-range solution for residential and commercial applications, the ROAM will operate up to a 1000-foot range. Keep your cool during winterization; get it done quickly and easily with only one worker instead of two. For use with Hunter controllers with SmartPort connections, the ROAM offers features other remotes cannot, at a price we all like. With a large LCD and simple push button operation, this remote is tough enough for anything with its sturdy ABS construction, but small enough to fit in your pocket. On hand and in demand.

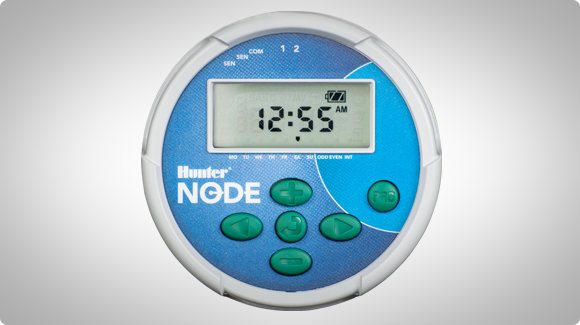

Node
Reliable Battery-Powered Control Without the Need of an Electrical Connection.
For isolated sites, power-restricted areas, or the special needs of drip zones, the Hunter Node is the smart, reliable solution. The Node mounts to a valve solenoid quickly and easily, and without screws, drills or additional wires. The unit's solid construction and waterproof exterior ensure it can handle the harsh environment of a valve box. Once placed in a valve box, the Node is operated by one or two 9V batteries, which provide standard or extended power throughout the season. Along with exceptional reliability, the Node features an easy-to-program LCD screen, the ability to control a Master Valve, and uses standard Hunter controller programming with 3 programs and 4 start times per program. The array of programming options and rugged reliability make the Node a compact, but powerful irrigation controller with the flexibility of battery power.
Dimensions
•Controller: 3 ½" diameter, 2 ½" tall
Specifications and Features
•Standard controller programming wth 3 programs and 4 start times each
•Max run time of 6 hours
•Seasonal adjustment 10-150%
•Accepts single or double 9 volt batteries for extended life
•Battery Life Indicator
•Master Valve Operation (available on 2, 4, 6 station models)
•Compatilbe with Hunter Clik Sensors and other micro-switch type weather sensors (wireless sensors not compatible)
•Sensor Bypass Function
•Waterproof to 12 feet
•Solenoid wire length up to 100 ft (AWG)
•Manual Cycle
•Programmable Off
•Easy Retrieve Memory
•IP68 Approval
•Compatible with Hunter Solar Panel
